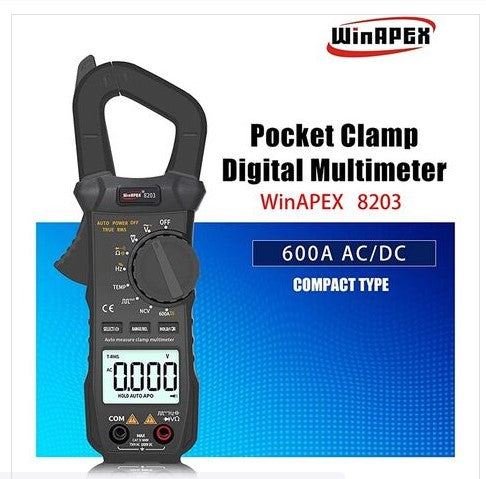

WinAPEX 8202 Pocket 6000 Counts True RMS Clamp Meter AC Voltage and Current

Material: ABS

Color: black

Model: 8202, 8203 (optional)

Display: LCD Maximum display: 5999 (3 5/6) bit automatic polarity display

Measurement method: double integral A/D conversion

Sampling rate: about 3 times per second Over range

display: the highest position shows "OL"

Working environment: (0～40)℃,

relative humidity ＜80%

Battery: 2 * AAA battery (not included)

 LCD size: 33 * 23mm / 1.3 * 0.9in

DC voltage range: 6V/60V/600V/1000V 6000

counts: 6V/60V/600V: ±(0.5%+3) 1000V: ±(0.8%+10)

DC voltage resolution: 0.001V/0.01V/0.1V/1V

AC voltage range: 6V/60V/600V/750V 6000

 counts: 6V/60V/600V: ±(0.8%+3) 750V: ±(1.2%+10)

AC voltage resolution: 0.001V/0.01V/0.1V/1V

AC current range: 6A/60A/600A 6000 counts: ±(2%+30)

 AC current resolution: 0.001A/0.01A/0.1A

The difference between 8203 and 8202: 8203 can measure DC current

DC current range: 60A/600A 6000 counts: ±(2%+30)

DC current resolution: 0.01A/0.1A

Resistance range: 600Ω/6kΩ/60kΩ/600kΩ/6MΩ/40MΩ 6000 counts: 600Ω: ±(0.8%+5) 6KΩ/60KΩ/600KΩ/6MΩ: ±(0.8%+3) 40MΩ: ±(2.5%+3)

Resistance resolution: 0.1Ω/1Ω/10Ω/100Ω/1KΩ/10KΩ

Capacitance range: 60nF/600nF/6μF/60μF/600μF/6mF/30mF 6000 counts: 60nF/600nF/6μF/60μF/600μF: ±(3.5%+20) 6mF/30mF: ±(5%+3)

Capacitance resolution: 10pF/100pF/1nF/10nF/100nF/1μF/10μF

Frequency range: 10Hz/100Hz/1KHz/10KHz/100KHz/1MHz/10MHz 6000 counts: ±(0.1%+3)

 Frequency resolution: 0.01Hz/0.1Hz/1Hz/10Hz/100Hz/1KHz/10KHz

Temperature measurement range: (-20-1000)℃/(0-1832)℉ 6000 counts: (-20-1000)℃: ±(1.0%+5)＜400℃; ±(1.5%+15)≥400℃ (0-1832)℉: ±(0.75%+5)＜750℉; ±(1.5%+15)≥750℉

 Temperature measurement resolution: 1℃/1℉

Square wave output: YES

 NCV: YES

Full unit symbol: YES

Backlight manual/Auto off: YES

 True RMS measurement: YES

• 1 x WinAPEX 8202 Clamp Meter(battery not included)
• 1 x Test Leads
• 1 x Temperature Probe
