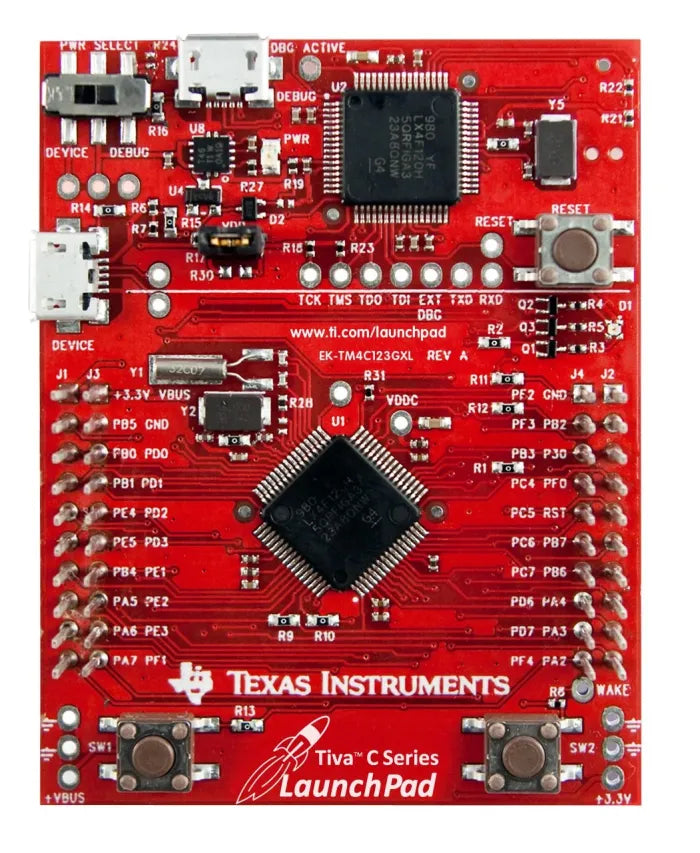

TM4C123GXL TM4C123G Launch Pad Evaluation Kit

This TM4C123GXL TM4C123G LaunchPad Evaluation board in Pakistan is a low-cost evaluation board from Texas Instruments.TM4C123G Tiva C Series LaunchPad highlights the TM4C123GH6PM microcontroller with a USB 2.0 device interface and hibernation module. This TM4C123G platform for ARM® Cortex™-M4-based microcontrollers

The EK-TM4C123GXL also features programmable user buttons and an RGB LED for custom applications. The stackable headers of the Tiva C Series TM4C123G LaunchPad BoosterPack XL Interface make it easy and simple to expand the functionality of the Tiva C Series LaunchPad when interfacing to other peripherals with compatible BoosterPacks.

The Tiva C Series LaunchPad provides an easy and inexpensive way to develop applications with the

1. Tiva C Series TM4C123GH6 microcontroller.



   Original Product Link http://www.ti.com/tool/EK-TM4C123GXL

   The Tiva C Series TM4C123G LaunchPad evaluation board offers these features:

   1. Tiva C Series TM4C123GH6 microcontroller
   2. USB Micro-AB connector: Device mode default configuration, Host/OTG modes supportable
   3. RGB user LED
   4. Two user switches (application/wake)
   5. Available I/O brought out to headers on a 0.1" grid
   6. Onboard In-Circuit Debug Interface (ICDI)
   7. Switch-selectable power sources: ICDI, USB device
   8. Reset switch
   9. Preloaded RGB quickstart application
   10. Supported by TivaWare™ for C Series software, including the USB Library and the Peripheral Driver Library
   11. Tiva C Series TM4C123G Launch Pad Booster Pack XL interface—features stackable headers to expand the capabilities of the 40-pin Tiva C Series Launch Pad evaluation platform

   The EK-TM4C123GXL works with TivaWare for C Series, as well as several different software toolchains, including:

   1. Keil
   2. Sourcery CodeBench
   3. IAR Tools
   4. Code Composer Studio

   Click here to download the Tiva C Series Launch Pad software.

   Get ICDI drivers here.

   The Tiva C Series TM4C123G LaunchPad Evaluation Kit includes the following items:

   1. Tiva C Series LaunchPad Evaluation board
   2. USB Micro-B plug to USB-A plug cable
   3. ReadMe First quick-start guide
