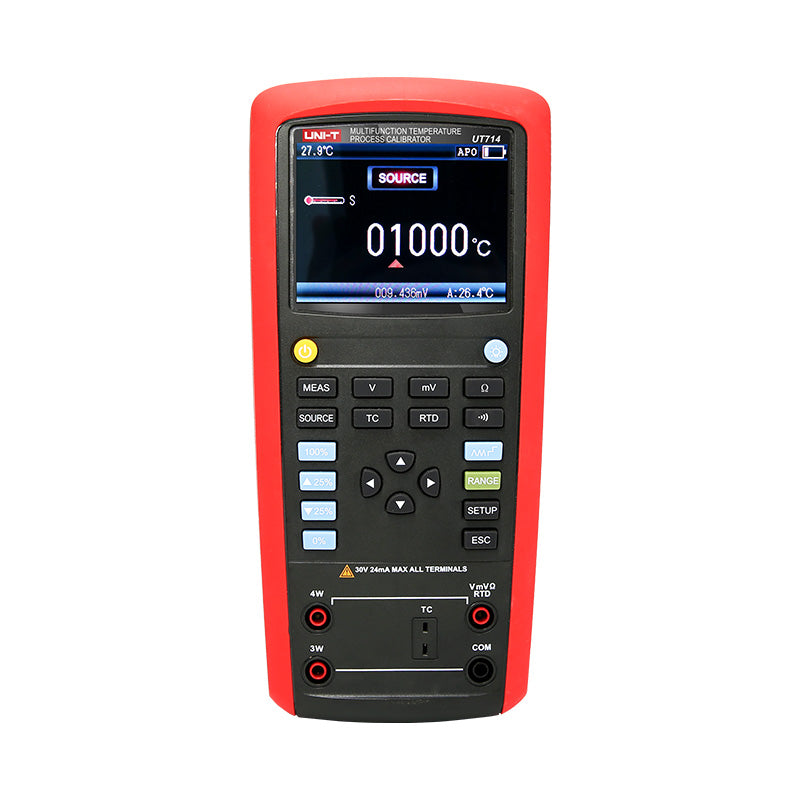

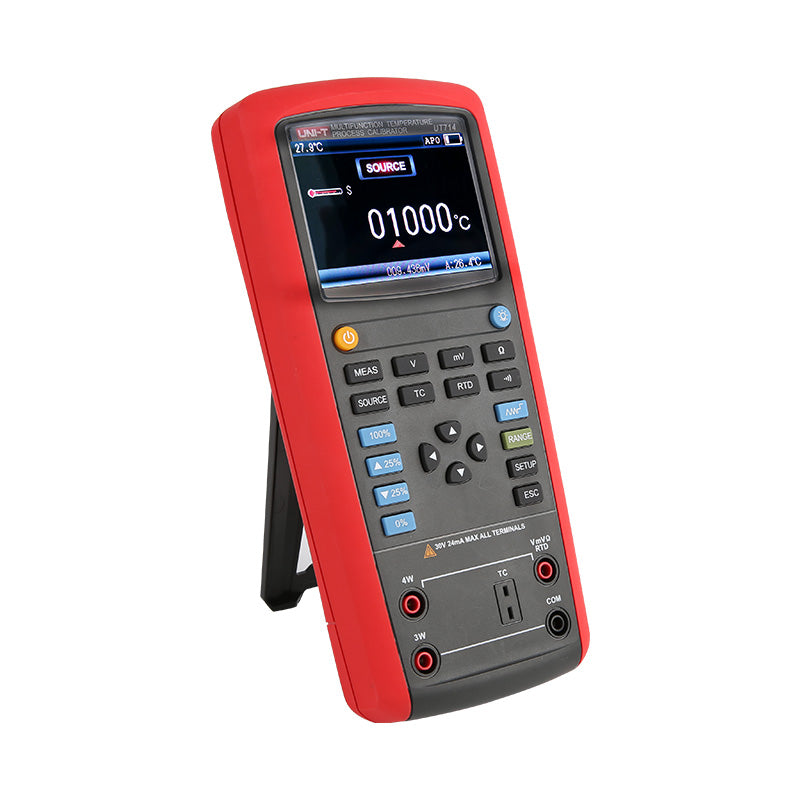

UNI-T UT714 Multifunction Temperature Process Calibrator
The UT714 is powerful temperature calibrator that sources and measures thermocouples, RTDs, voltage, and resistance. It can be used to test and calibrate different types of temperature instruments. This device is...
The UT714 is powerful temperature calibrator that sources and measures thermocouples, RTDs, voltage, and resistance. It can be used to test and calibrate different types of temperature instruments. This device is suitable for testing input/output temperature terminals such as sensors and transmitters.
Features of UNI-T UT714 Multifunction Temperature Process Calibrator:
- Step/ramp functions
- Source and measure accuracy up to 0.02%
- Rechargeable battery
- Contrast adjustment
- Auto power off (Time adjustable)
- Stores and recalls setups
- USB communication
Technical Specifications
| Type | Range | Accuracy |
| Certificates | CE, RoHS | |
| Measurement | ||
| DC voltage (V) | 50mV/500mV/30V | ±(0.02%+2) |
| Resistance (Ω) | 500Ω/5000Ω | ±(0.05%+10) |
| Thermocouples | R,S,K,E,J,T,N,B,L,U | |
| RTDs | Pt100/Pt200/Pt500/Pt1000/Cu10/Cu50/Cu100/Pt100-392/Pt100-JIS/Ni120 | |
| Continuity test | √ | |
| Source | ||
| DC voltage (V) | 100mV/1000mV/10V | ±(0.02%+10) |
| Resistance (Ω) | 400Ω/4000Ω | ±(0.05%+10) |
| Thermocouples | R,S,K,E,J,T,N,B,L,U | |
| RTDs | Pt100-385/Pt100-392/Pt100-JIS/Pt200-385/P500-385/Pt1000-385/Cu10/Cu50/Cu100/Ni120 | |
| Display count | 20000 | |
| Operating temperature | -10°C~55°C | |
| General Characterisitics | ||
| Power | 1.2V x 6 AA rechargeable battery | |
| Product net weight | 650g | |
| Product size | 195mm x 95mm x 58mm | |
| Standard accessory | Test lead, USB cable, power adapter, temperature probe, English manual | |
