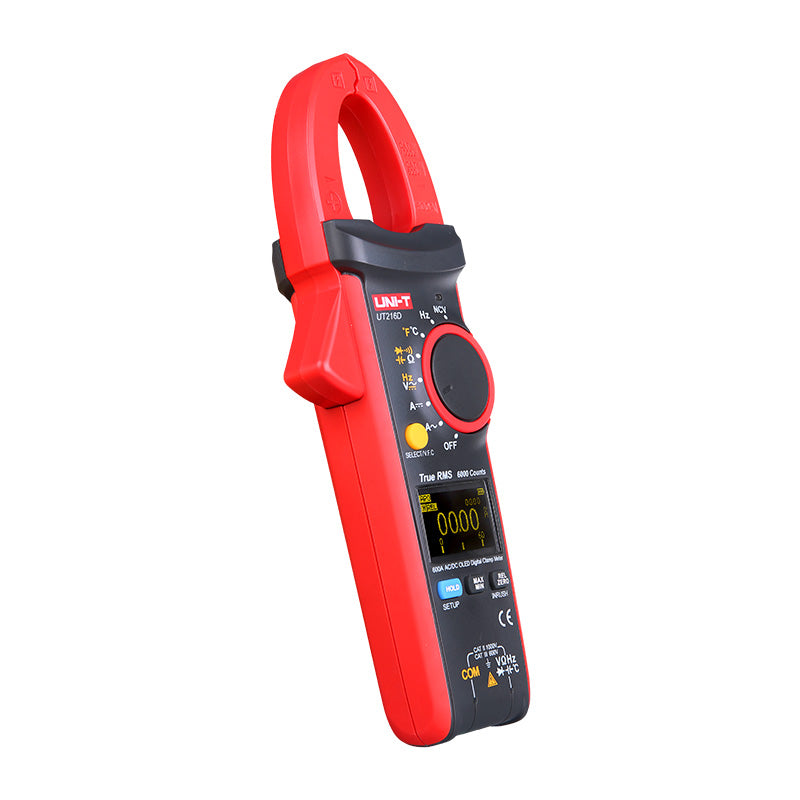

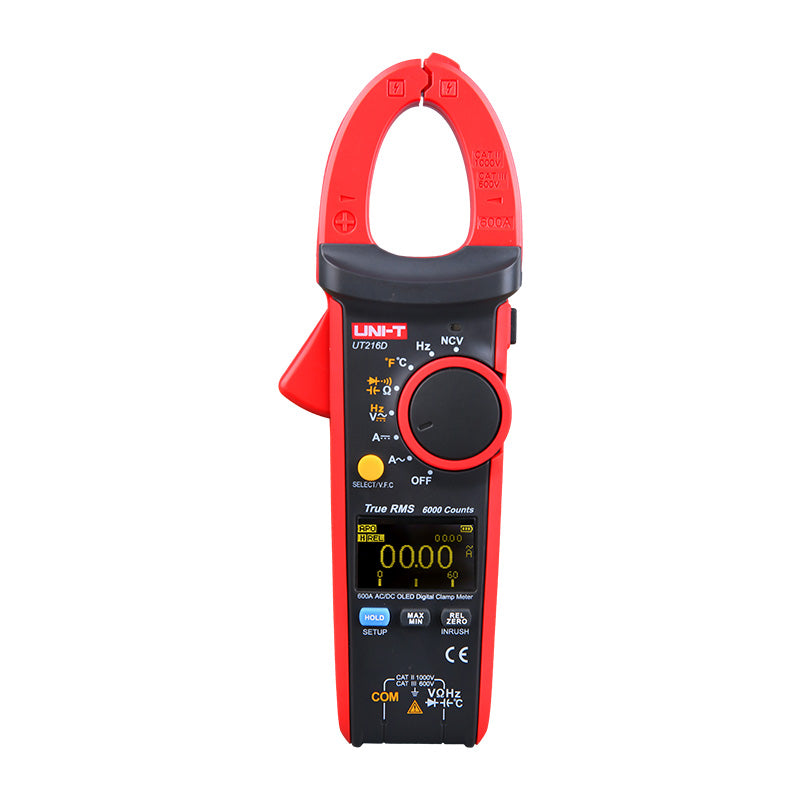

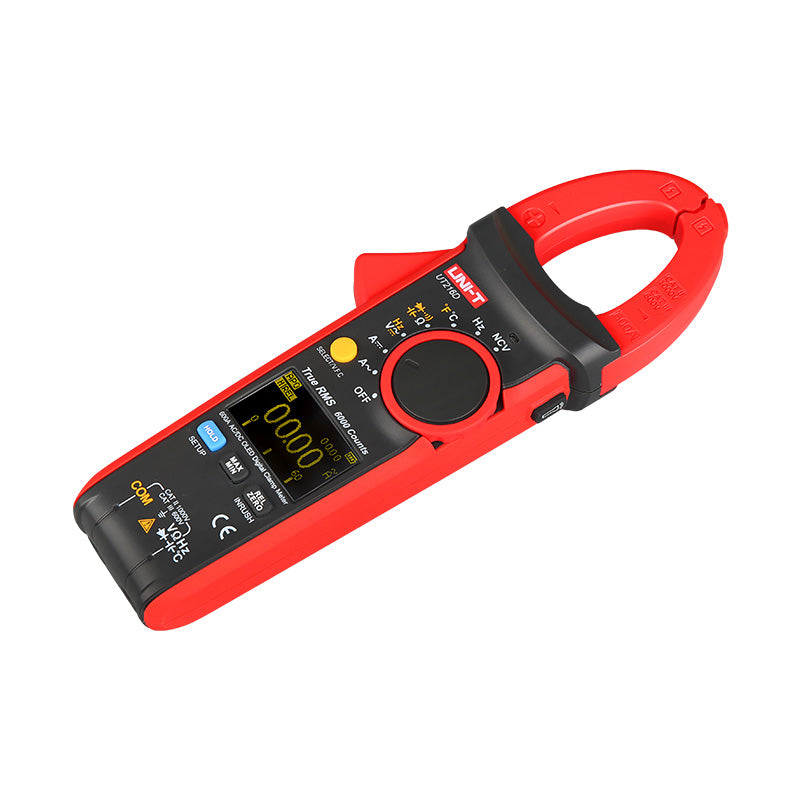

UNI-T UT216D 600A True RMS Digital Clamp Meter
UT216 series digital clamp meters are designed for measuring high frequency currents (up to 400Hz) in server rooms, IT systems, etc. Its double injection design gives users a more comfortable grip...
UT216 series digital clamp meters are designed for measuring high frequency currents (up to 400Hz) in server rooms, IT systems, etc. Its double injection design gives users a more comfortable grip and enhanced durability. UT216’s 6000 count display also provides more precise readings for users.
Models in UT216 series: UT216A, UT216B, UT216C, UT216D
Features of UNI-T UT216D 600A True RMS Digital Clamp Meter
Certifications: CE, UKCA, cETLus
- True RMS
- Auto range, 3 times/s sampling rate
- MAX/MIN/Relative modes
- Flashlight
- NCV, non-contact AC voltage testing
Specifications of UNI-T UT216D 600A True RMS Digital Clamp Meter
| Specifications | Range | UT216A | UT216B | UT216C | UT216D |
| AC current (A) | 600A | ±(2.5%+5) | ±(2.5%+5) | ±(2.5%+5) | ±(2.5%+5) |
| AC current frequency response | 50/60Hz | 40~400Hz | 40~400Hz | 40~400Hz | |
| DC current (A) | 600A | ±(2.5%+5) | ±(2.5%+5) | ||
| AC voltage (V) | 750V | ±(1.2%+5) | ±(1.2%+5) | ±(1.2%+5) | ±(1.2%+5) |
| AC voltage frequency response | 40~400Hz | 40~400Hz | 40~400Hz | 45~400Hz | |
| DC voltage (V) | 1000V | ±(0.8%+1) | ±(0.8%+1) | ±(0.8%+1) | ±(0.8%+1) |
| Resistance (Ω) | 60MΩ | ±(1%+2) | ±(1%+2) | ±(1%+2) | ±(1%+2) |
| Capacitance (F) | 60mF | ±(4%+5) | ±(4%+5) | ±(4%+5) | ±(4%+5) |
| Frequency (Hz) | 10Hz~1MHz | ±(0.1%+4) | ±(0.1%+4) | ±(0.1%+4) | |
| Temperature | -40°C~1000°C | ±(2%+5) | ±(2.5%+3) | ||
| -40°F~1832°F | ±(2%+10) | ±(2.5%+6) | |||
| Features | |||||
| Display count | 6000 | 6000 | 6000 | 6000 | |
| Auto range | √ | √ | √ | √ | |
| Jaw opening | 30mm | 30mm | 30mm | 30mm | |
| True RMS | √ | √ | √ | √ | |
| Diode | Around 3.0V | √ | √ | √ | √ |
| V.F.C. | √ | √ | √ | ||
| NCV | √ | √ | √ | √ | |
| Data hold | √ | √ | √ | √ | |
| Relative mode | √ | √ | √ | √ | |
| MAX/MIN | √ | √ | √ | √ | |
| LCD backlight | √ | √ | √ | ||
| Inrush current | √ | √ | |||
| OLED display | √ | ||||
| Analog bar graph | 61 | 21 | |||
| Flashlight | √ | √ | √ | √ | |
| Auto power off | √ | √ | √ | √ | |
| Continuity buzzer | √ | √ | √ | √ | |
| Low battery indication | ≤3.6V | √ | √ | √ | √ |
| Input protection | √ | √ | √ | √ | |
| Input impedance for DCV | ≥10MΩ | √ | √ | √ | √ |
| General Characteristics | |||||
| Power | 1.5V battery (R03) x 3 | ||||
| Display | 38mm x 24mm | ||||
| Product color | Red and grey | ||||
| Product net weight | UT216A: 280g; UT216B/C/D: 231.7g | ||||
| Product size | 220mm x 75mm x 40mm | ||||
| Standard accessories | Batteries, test leads, point contact temperature probe (UT216C/UT216D) | ||||
| Standard individual packing | Gift box, carrying bag, English manual | ||||
| Standard quantity per carton | 40pcs | ||||
| Standard carton measurement | 485mm x 345mm x 385mm | ||||
| Standard carton gross weight | UT216A: 20.6kg; UT216B: 19.3kg; UT216C: 20.1kg; UT216D: 20.3kg | ||||
